rocketmq源码阅读(6)——remoting模块

Posted by New Boy on February 24, 2019

前言

本文中，会看看rocketmq中remoting模块中的代码。remoting模块主要对netty进行了一层封装，至于netty的细节本文中就不细讲了，建议对netty有一些基本的了解再来看此文会比较好。我们其实可以看看像rocketmq这种成熟的消息队列中间件是如何使用netty这种高性能网络通信框架。

从功能上来看，分为NettyRemotingClient和NettyRemotingServer这两个类，两个有分别继承了抽象类NettyRemotingAbstract，顾名思义，NettyRemotingServer就是服务端，NettyRemotingClient就是客户端，分别来看一下

NettyRemotingServer

server端的启动

在broker启动时，会触发NettyRemotingServer.start():

this.defaultEventExecutorGroup = new DefaultEventExecutorGroup(
    nettyServerConfig.getServerWorkerThreads(),
    new ThreadFactory() {

        private AtomicInteger threadIndex = new AtomicInteger(0);

        @Override
        public Thread newThread(Runnable r) {
            return new Thread(r, "NettyServerCodecThread_" + this.threadIndex.incrementAndGet());
        }
    });

ServerBootstrap childHandler =
    this.serverBootstrap.group(this.eventLoopGroupBoss, this.eventLoopGroupSelector)
    .channel(useEpoll() ? EpollServerSocketChannel.class : NioServerSocketChannel.class)
    .option(ChannelOption.SO_BACKLOG, 1024)
    //打开地址复用
    .option(ChannelOption.SO_REUSEADDR, true)
    //关闭心跳
    .option(ChannelOption.SO_KEEPALIVE, false)
    .childOption(ChannelOption.TCP_NODELAY, true)
    //64k
    .childOption(ChannelOption.SO_SNDBUF, nettyServerConfig.getServerSocketSndBufSize())
    //64k
    .childOption(ChannelOption.SO_RCVBUF, nettyServerConfig.getServerSocketRcvBufSize())
    //绑定端口，用于监听连接请求
    .localAddress(new InetSocketAddress(this.nettyServerConfig.getListenPort()))
    .childHandler(new ChannelInitializer<SocketChannel>() {
        @Override
        public void initChannel(SocketChannel ch) throws Exception {
            ch.pipeline()
                .addLast(defaultEventExecutorGroup, HANDSHAKE_HANDLER_NAME,
                         new HandshakeHandler(TlsSystemConfig.tlsMode))
                .addLast(defaultEventExecutorGroup,
                         new NettyEncoder(),//outbound
                         new NettyDecoder(),//inbound
                         //Duplex
                         new IdleStateHandler(0, 0, nettyServerConfig.getServerChannelMaxIdleTimeSeconds()),
                         //Duplex
                         new NettyConnectManageHandler(),
                         //inbound
                         new NettyServerHandler()
                        );
        }
    });

if (nettyServerConfig.isServerPooledByteBufAllocatorEnable()) {
    childHandler.childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT);
}

try {
    ChannelFuture sync = this.serverBootstrap.bind().sync();
    InetSocketAddress addr = (InetSocketAddress) sync.channel().localAddress();
    this.port = addr.getPort();
} catch (InterruptedException e1) {
    throw new RuntimeException("this.serverBootstrap.bind().sync() InterruptedException", e1);
}

if (this.channelEventListener != null) {
    this.nettyEventExecutor.start();
}

this.timer.scheduleAtFixedRate(new TimerTask() {

    @Override
    public void run() {
        try {
            NettyRemotingServer.this.scanResponseTable();
        } catch (Throwable e) {
            log.error("scanResponseTable exception", e);
        }
    }
}, 1000 * 3, 1000);

一步一步来看：

1.初始化defaultEventExecutorGroup，defaultEventExecutorGroup中的线程会用于ChannelHandler中的方法

2.初始化ServerBootstrap以及绑定服务端的端口，rpc服务的打开

3.处理服务端的超时请求

这边主要还是看看第2步

首先是用了reactor中的主从模型，在下在之前的文章中也写过reactor相关的文章，相关的两个线程组就是this.eventLoopGroupBoss, this.eventLoopGroupSelector。

接下来是对channel设置相关的参数。其中相关参数的意思就不细写了，网上也有比较多且细的文章。其实看的时候特别疑惑option和childoption的区别。后来一顿搜索，option适用于ServerChannel，而childOption适用于每个客户端连接时创建的channel。

接着再来看看channelPipeline相关的参数，当然也是最为重要的一块。channelPipeline是基于责任链模式设计的。主要分为OutboundHanndler和InBoundHanndler，OutboundHanndler就是出pipeline时要执行的handler，InBoundHandler相反。


ServerBootstrap初始化时设置了6个相关的Handler：

1.HandshakeHandler，用于处理使用了TLS协议连接，对于传输过程中是否通过TLS加密，其实取决于client端的配置。在Server端，这个Handler所起的作用就是是否强制使用TLS（默认设置为TLS使用与否都可以，相关请求均不会被Server拒绝）

2.NettyEncoder，内容编码，设计到rocketmq的传输协议，下文细写

3.NettyDecoder，内容解码，设计到rocketmq的传输协议，下文细写

3.IdleStateHandler，netty内部实现的一种心跳机制，以避免资源的浪费，这里就跳过了

4.NettyConnectManageHandler，管理客户端的连接，包括connect，disconnect等事件

5.NettyServerHandler，处理收到的RemotingCommand。这一块实现是在NettyRemotingClient和NettyRemotingServer的父类NettyRemotingAbstract中实现的，下文细写

NettyRemotingClient

client启动

@Override
public void start() {
    this.defaultEventExecutorGroup = new DefaultEventExecutorGroup(
        nettyClientConfig.getClientWorkerThreads(),
        new ThreadFactory() {

            private AtomicInteger threadIndex = new AtomicInteger(0);

            @Override
            public Thread newThread(Runnable r) {
                return new Thread(r, "NettyClientWorkerThread_" + this.threadIndex.incrementAndGet());
            }
        });

    Bootstrap handler = this.bootstrap.group(this.eventLoopGroupWorker).channel(NioSocketChannel.class)
        .option(ChannelOption.TCP_NODELAY, true)
        .option(ChannelOption.SO_KEEPALIVE, false)
        .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, nettyClientConfig.getConnectTimeoutMillis())
        .option(ChannelOption.SO_SNDBUF, nettyClientConfig.getClientSocketSndBufSize())
        .option(ChannelOption.SO_RCVBUF, nettyClientConfig.getClientSocketRcvBufSize())
        .handler(new ChannelInitializer<SocketChannel>() {
            @Override
            public void initChannel(SocketChannel ch) throws Exception {
                ChannelPipeline pipeline = ch.pipeline();
                if (nettyClientConfig.isUseTLS()) {
                    if (null != sslContext) {
                        pipeline.addFirst(defaultEventExecutorGroup, "sslHandler", sslContext.newHandler(ch.alloc()));
                        log.info("Prepend SSL handler");
                    } else {
                        log.warn("Connections are insecure as SSLContext is null!");
                    }
                }
                pipeline.addLast(
                    defaultEventExecutorGroup,
                    new NettyEncoder(),
                    new NettyDecoder(),
                    new IdleStateHandler(0, 0, nettyClientConfig.getClientChannelMaxIdleTimeSeconds()),
                    new NettyConnectManageHandler(),
                    new NettyClientHandler());
            }
        });

    this.timer.scheduleAtFixedRate(new TimerTask() {
        @Override
        public void run() {
            try {
                NettyRemotingClient.this.scanResponseTable();
            } catch (Throwable e) {
                log.error("scanResponseTable exception", e);
            }
        }
    }, 1000 * 3, 1000);

    if (this.channelEventListener != null) {
        this.nettyEventExecutor.start();
    }
}

初始化的过程和Server的启动基本类似。。。

当然，有一点需要注意的是，启动时是不会去连接Server端的。第一次连接的建立而是在第一次向服务端发送请求时。发送请求时会先从内存中根据server端的ip:port找到相应的通道，再写入内容。如果未找到相应的通道，则会进行connect请求

private final ConcurrentMap<String /* addr */, ChannelWrapper> channelTables = new ConcurrentHashMap<String, ChannelWrapper>();

报文相关

格式

在写格式之前，我们先来看看相关的实体类。对于每次请求，其实都是发送一个RemotingCommand对象，相关的参数为：

private int code;
private LanguageCode language = LanguageCode.JAVA;
private int version = 0;
//每次请求生成的唯一Id
private int opaque = requestId.getAndIncrement();
private int flag = 0;
private String remark;
private HashMap<String, String> extFields;
private transient CommandCustomHeader customHeader;

private SerializeType serializeTypeCurrentRPC = serializeTypeConfigInThisServer;

private transient byte[] body;

可以看到，其中header和body都是无法序列化的。

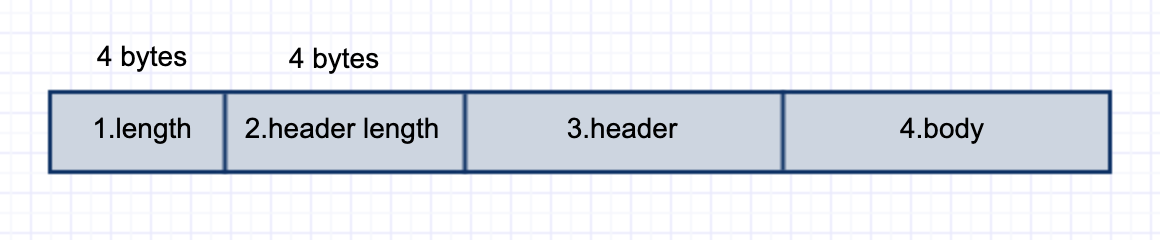

再来看看相关协议格式的设计，分为4部分，第1部分的length指2，3，4部分的总字节数，第2部分包括第3部分的序列化方式以及第3部分的字节数

编码

来看看上文中提到的NettyEncoder

public class NettyEncoder extends MessageToByteEncoder<RemotingCommand> {
    private static final InternalLogger log = InternalLoggerFactory.getLogger(RemotingHelper.ROCKETMQ_REMOTING);

    @Override
    public void encode(ChannelHandlerContext ctx, RemotingCommand remotingCommand, ByteBuf out)
        throws Exception {
        try {
            //header转byte
            ByteBuffer header = remotingCommand.encodeHeader()
            out.writeBytes(header);
            byte[] body = remotingCommand.getBody();
            if (body != null) {
                out.writeBytes(body);
            }
        } catch (Exception e) {
            log.error("encode exception, " + RemotingHelper.parseChannelRemoteAddr(ctx.channel()), e);
            if (remotingCommand != null) {
                log.error(remotingCommand.toString());
            }
            RemotingUtil.closeChannel(ctx.channel());
        }
    }
}

NettyEncode继承了MessageToByteEncoder，MessageToByteEncoder是netty提供的类，这边就不关心了。直接来看一下继承的encode()方法

我们可以看到，request分为两次发送

out.writeBytes(header);
out.writeBytes(body);

来看看encodeHeader()方法，相关的解释都在注释中写了

public ByteBuffer encodeHeader(final int bodyLength) {
    // 1> header length size
    int length = 4;

    // 2> header data length
    byte[] headerData;
    //sum length
    //headerEncode分为两部：1.通过反射将customHeader中的字段值放入extFields中。2.进行序列化，默认为json序列化方式
    headerData = this.headerEncode();

    length += headerData.length;

    // 3> body data length
    length += bodyLength;

    //分配缓冲区
    ByteBuffer result = ByteBuffer.allocate(4 + length - bodyLength);

    // length
    // 总长度
    result.putInt(length);

    // header length
    //markProtocolType返回4个字节，第一个字节为header的序列化方案，后三个字节代表header长度，其实可以理解为上限为(2^24 -1)的整数
    result.put(markProtocolType(headerData.length, serializeTypeCurrentRPC));

    // header data
    result.put(headerData);

    result.flip();

    return result;
}

解码

而对于NettyDecode，继承了netty的LengthFieldBasedFrameDecoder，直接来看看RemotingCommand.decode(final ByteBuffer byteBuffer)方法

public static RemotingCommand decode(final ByteBuffer byteBuffer) {
    int length = byteBuffer.limit();
    //第二部分的数据
    int oriHeaderLen = byteBuffer.getInt();
    //获取header的长度
    int headerLength = getHeaderLength(oriHeaderLen);

    byte[] headerData = new byte[headerLength];
    byteBuffer.get(headerData);

    //获取header的序列化方式，以及反序列化
    RemotingCommand cmd = headerDecode(headerData, getProtocolType(oriHeaderLen));

    //从缓存区读取bodyLength个字节
    int bodyLength = length - 4 - headerLength;
    byte[] bodyData = null;
    if (bodyLength > 0) {
        bodyData = new byte[bodyLength];
        byteBuffer.get(bodyData);
    }
    cmd.body = bodyData;

    return cmd;
}

上面注释中包括了协议中2，3，4部分的解析。第一部分在初始化NettyDecode时设置为跳过

public NettyDecoder() {
    //第二个4就是跳过的byte数
    super(FRAME_MAX_LENGTH, 0, 4, 0, 4);
}

发送一次Request

在前面看client端的代码的时候，在同步发送消息时，会触发invokeSync()函数，就简单看一下这个过程

//org.apache.rocketmq.remoting.netty.NettyRemotingAbstract#invokeSyncImpl
public RemotingCommand invokeSyncImpl(final Channel channel, final RemotingCommand request,
                                      final long timeoutMillis)
    throws InterruptedException, RemotingSendRequestException, RemotingTimeoutException {
	//opaque是指唯一Id，由AtomicInteger.getAndIncrement();生成
    final int opaque = request.getOpaque();

    try {
        final ResponseFuture responseFuture = new ResponseFuture(channel, opaque, timeoutMillis, null, null);
        //在responseTable放入responseFuture，等待server执行完成命令
        this.responseTable.put(opaque, responseFuture);
        final SocketAddress addr = channel.remoteAddress();
        channel.writeAndFlush(request).addListener(new ChannelFutureListener() {
            @Override
            public void operationComplete(ChannelFuture f) throws Exception {
                //确定发送成功
                if (f.isSuccess()) {
                    responseFuture.setSendRequestOK(true);
                    return;
                } else {
                    responseFuture.setSendRequestOK(false);
                }

                responseTable.remove(opaque);
                responseFuture.setCause(f.cause());
                responseFuture.putResponse(null);
                log.warn("send a request command to channel <" + addr + "> failed.");
            }
        });

        //waitResponse内部通过countDownLatch实现阻塞等待
        RemotingCommand responseCommand = responseFuture.waitResponse(timeoutMillis);
        if (null == responseCommand) {
            if (responseFuture.isSendRequestOK()) {
                throw new RemotingTimeoutException(RemotingHelper.parseSocketAddressAddr(addr), timeoutMillis,
                                                   responseFuture.getCause());
            } else {
                throw new RemotingSendRequestException(RemotingHelper.parseSocketAddressAddr(addr), responseFuture.getCause());
            }
        }

        return responseCommand;
    } finally {
        this.responseTable.remove(opaque);
    }
}

来看看responseFuture.waitResponse(timeoutMillis)：

public RemotingCommand waitResponse(final long timeoutMillis) throws InterruptedException {
    this.countDownLatch.await(timeoutMillis, TimeUnit.MILLISECONDS);
    return this.responseCommand;
}

那么在什么时候countDownlatch会进行countDown操作呢？

我们接着来看看NettyClientHandler类，从NettyClientHandler#channelRead0()逐渐深入

public void processMessageReceived(ChannelHandlerContext ctx, RemotingCommand msg) throws Exception {
    final RemotingCommand cmd = msg;
    if (cmd != null) {
        switch (cmd.getType()) {
            case REQUEST_COMMAND:
                processRequestCommand(ctx, cmd);
                break;
            case RESPONSE_COMMAND:
                processResponseCommand(ctx, cmd);
                break;
            default:
                break;
        }
    }
}

分别来看看request和response的处理过程

response

//NettyRemotingAbstract#processResponseCommand
public void processResponseCommand(ChannelHandlerContext ctx, RemotingCommand cmd) {
    final int opaque = cmd.getOpaque();
    final ResponseFuture responseFuture = responseTable.get(opaque);
    if (responseFuture != null) {
        responseFuture.setResponseCommand(cmd);

        responseTable.remove(opaque);

        if (responseFuture.getInvokeCallback() != null) {
            //异步，去触发相关的callback（同步方式可以忽略这个方法）
            executeInvokeCallback(responseFuture);
        } else {
            //同步的情况，需要放入response，并对countDownLatch进行countDown操作
            responseFuture.putResponse(cmd);
            responseFuture.release();
        }
    } else {
        log.warn("receive response, but not matched any request, " + RemotingHelper.parseChannelRemoteAddr(ctx.channel()));
        log.warn(cmd.toString());
    }
}

response大致就是就这些

request

如果在broker端，接收到request，那该怎么处理呢？

整理了一下，除去一些异常的处理，主要就是以下的代码

final Pair<NettyRequestProcessor, ExecutorService> matched = this.processorTable.get(cmd.getCode());
final Pair<NettyRequestProcessor, ExecutorService> pair = null == matched ? this.defaultRequestProcessor : matched;
final int opaque = cmd.getOpaque();
...
Runnable run = new Runnable() {
    @Override
    public void run() {
        ...
    }
}
...

final RequestTask requestTask = new RequestTask(run, ctx.channel(), cmd);
pair.getObject2().submit(requestTask);
...

其中processorTable是用了策略模式，根据requestCode对不同的执行器以及对应的ExecutorService进行了一层映射

最后来看看run的实现

@Override
public void run() {
    try {
        RPCHook rpcHook = NettyRemotingAbstract.this.getRPCHook();
        if (rpcHook != null) {
            rpcHook.doBeforeRequest(RemotingHelper.parseChannelRemoteAddr(ctx.channel()), cmd);
        }

        //处理request逻辑
        final RemotingCommand response = pair.getObject1().processRequest(ctx, cmd);
        if (rpcHook != null) {
            rpcHook.doAfterResponse(RemotingHelper.parseChannelRemoteAddr(ctx.channel()), cmd, response);
        }

        if (!cmd.isOnewayRPC()) {
            if (response != null) {
                response.setOpaque(opaque);
                response.markResponseType();
                try {
                    //往channel中写入response
                    ctx.writeAndFlush(response);
                } catch (Throwable e) {
                    ...
                }
            } else {

            }
        }
    } catch (Throwable e) {
        ...
    }
}

思考

至此，已经看完了rocketmq中remoting模块中一些基本功能的实现。在对于netty的使用上，还是很有收获的，复杂的网络问题都在netty中得到了很好的解决。之前简单了解过netty，感觉以后还是要再拜读一下。

FEATURED TAGS
杂记 git java mysql 网络 redis 设计模式 rocketmq
FRIENDS
