前言
从最初，自己就对网络编程比较感兴趣，这段时间看了netty权威指南，收获很多。我觉得所有的知识都是要落地才能体现其价值，也为了加深自己对reactor模式的理解，自己也就敲了一遍，当然中间也遇到了很多困难，废话不多说，上代码。
以下代码使用java原生nio实现，未考虑半包，粘包等问题
common类
主要包含客户端启动代码，之后的服务端使用同一个客户端代码，还有就是写字节函数。
//AsysWriter.java
//写字节函数，之后服务端会使用该函数
public class AsysWriter {
public static void doWrite(SocketChannel channel, String response) throws IOException {
byte[] bytes = response.getBytes();
ByteBuffer writeBuffer = ByteBuffer.allocate(bytes.length);
writeBuffer.put(bytes);
writeBuffer.flip();
channel.write(writeBuffer);
}
}
//Client.java
package com.dmc.common;
import com.sun.org.apache.xpath.internal.operations.Bool;
import org.apache.ibatis.annotations.SelectKey;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.net.SocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;
import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.ReentrantLock;
import static com.dmc.common.AsysWriter.doWrite;
public class Client implements Runnable{
private SocketChannel clientChannel;
private Selector selector;
private volatile Boolean connected = false;
private ReentrantLock lock = new ReentrantLock();
private Condition condition = lock.newCondition();
public Client() {
try {
clientChannel = SocketChannel.open();
selector = Selector.open();
clientChannel.configureBlocking(false);
clientChannel.register(selector, SelectionKey.OP_CONNECT);
clientChannel.connect(new InetSocketAddress("127.0.0.1", 9090));
} catch (IOException e) {
e.printStackTrace();
}
}
public void run() {
try {
Set<SelectionKey> selectionKeys = null;
while (true) {
selector.select();
selectionKeys = selector.selectedKeys();
for (Iterator<SelectionKey> it = selectionKeys.iterator(); it.hasNext(); ) {
SelectionKey key = it.next();
it.remove();
SocketChannel sc = (SocketChannel) key.channel();
if (key.isConnectable()) {
lock.lock();
try {
System.out.println("client connect...");
if (sc.finishConnect()) ;
else System.exit(1);
sc.register(selector, SelectionKey.OP_READ);
this.connected = true;
System.out.println("this.connect is " + this.connected);
condition.signal();
} finally {
lock.unlock();
}
} else if (key.isReadable()) {
ByteBuffer byteBuffer = ByteBuffer.allocate(1024);
int length = sc.read(byteBuffer);
if (length > 0) {
byteBuffer.flip();
byte[] ans = new byte[byteBuffer.remaining()];
byteBuffer.get(ans);
String response = new String(ans, "UTF-8");
System.out.println("get the result from server : " + response);
}
}
}
}
} catch (Exception e) {
e.printStackTrace();
}
}
public void sendMsg(String sendString) throws Exception {
lock.lock();
try {
if (!this.connected) {
condition.await();
}
clientChannel.register(selector, SelectionKey.OP_READ);
doWrite(clientChannel, sendString);
} finally {
lock.unlock();
}
}
}
//ClientStart.java
//客户端启动代码
package com.dmc.common;
import java.util.Scanner;
public class ClientStart {
public static void main(String[] args) throws Exception {
for (int i = 0; i < 1; i ++) {
Client client1 = new Client();
Thread thread = new Thread(client1);
thread.start();
Scanner in = new Scanner(System.in);
while (in.hasNextLine()) {
String str = in.nextLine();
client1.sendMsg(str);
}
}
}
}

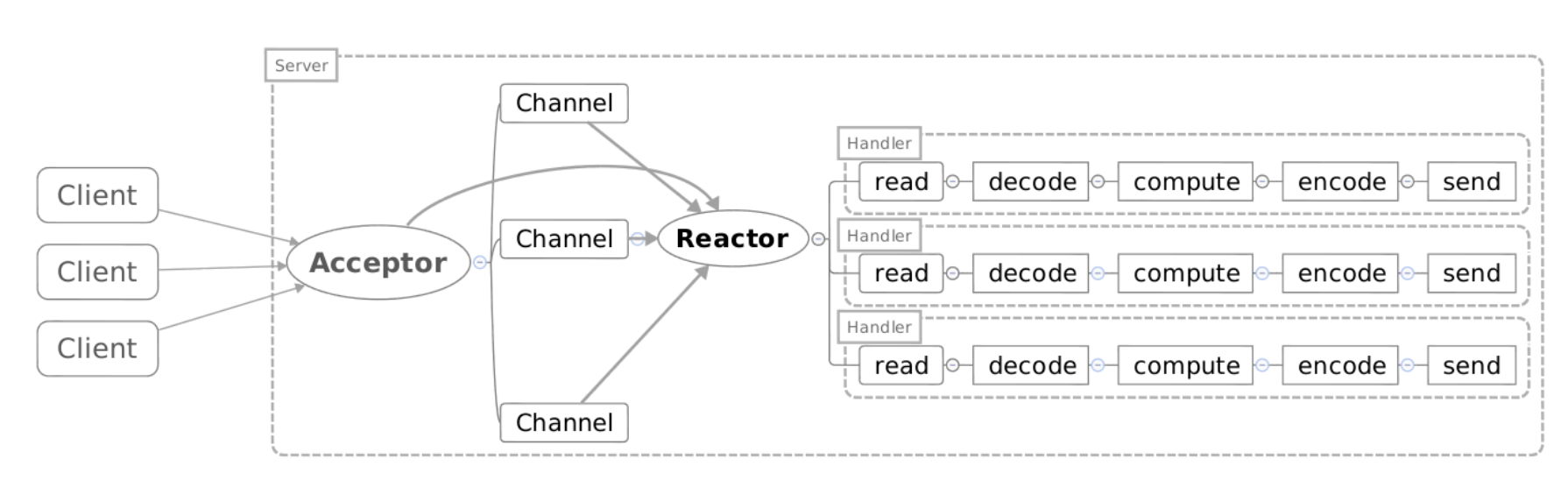

单线程
//Server.java
package dmcOneThread;
import org.springframework.expression.spel.ast.Selection;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.net.ServerSocket;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;
import static com.dmc.common.AsysWriter.doWrite;
public class Server {
public static void main(String[] args){
try {
ServerSocketChannel serverSocketChannel;
Selector selector;
Selector selector1;
Set<SelectionKey> selectionKeys = null;
serverSocketChannel = ServerSocketChannel.open();
selector = Selector.open();
selector1 = Selector.open();
serverSocketChannel.configureBlocking(false);
serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);
serverSocketChannel.register(selector1, SelectionKey.OP_ACCEPT);
serverSocketChannel.bind(new InetSocketAddress("127.0.0.1", 9090));
System.out.println("server is start");
while (true) {
selector.select();
selectionKeys = selector.selectedKeys();
for (Iterator<SelectionKey> it = selectionKeys.iterator(); it.hasNext(); ) {
SelectionKey key = it.next();
it.remove();
if (key.isAcceptable()) {
ServerSocketChannel ssc = (ServerSocketChannel) key.channel();
SocketChannel client = ssc.accept();
client.configureBlocking(false);
client.register(selector, SelectionKey.OP_READ);
System.out.println("connected...");
}
else if (key.isReadable()) {
SocketChannel sc = (SocketChannel) key.channel();
ByteBuffer byteBuffer = ByteBuffer.allocate(1024);
int readBytes = sc.read(byteBuffer);
if (readBytes > 0) {
byteBuffer.flip();
byte[] bytes = new byte[byteBuffer.remaining()];
byteBuffer.get(bytes);
String response = new String(bytes, "UTF-8");
System.out.println("GET, the request is " + response + " it's from " + sc.getRemoteAddress());
String result = response + " 's result";
System.out.println("send result...");
doWrite(sc, result + "");
}
//链路已经关闭，释放资源
else if (readBytes < 0) {
key.cancel();
sc.close();
}
}
}
}
} catch (Exception e) {
e.printStackTrace();
}
}
}

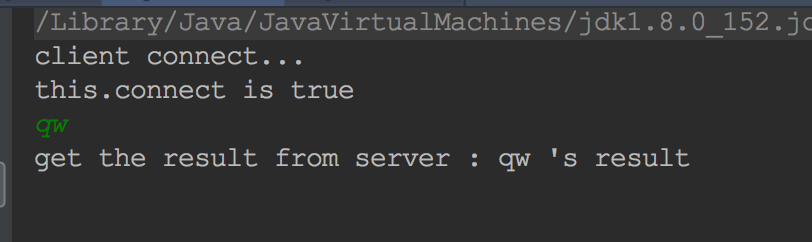

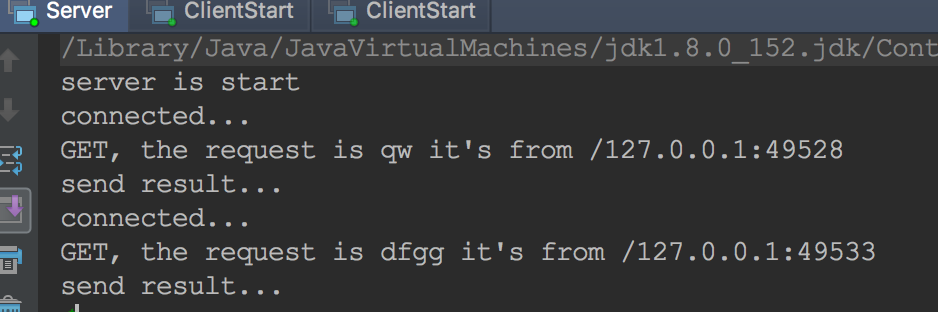

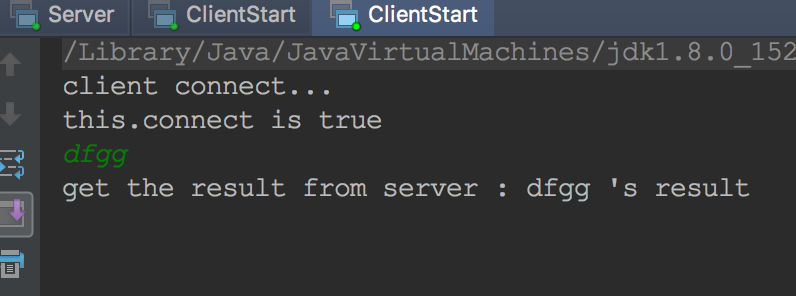

测试结果(之后就不放测试结果了，都是一样的)：

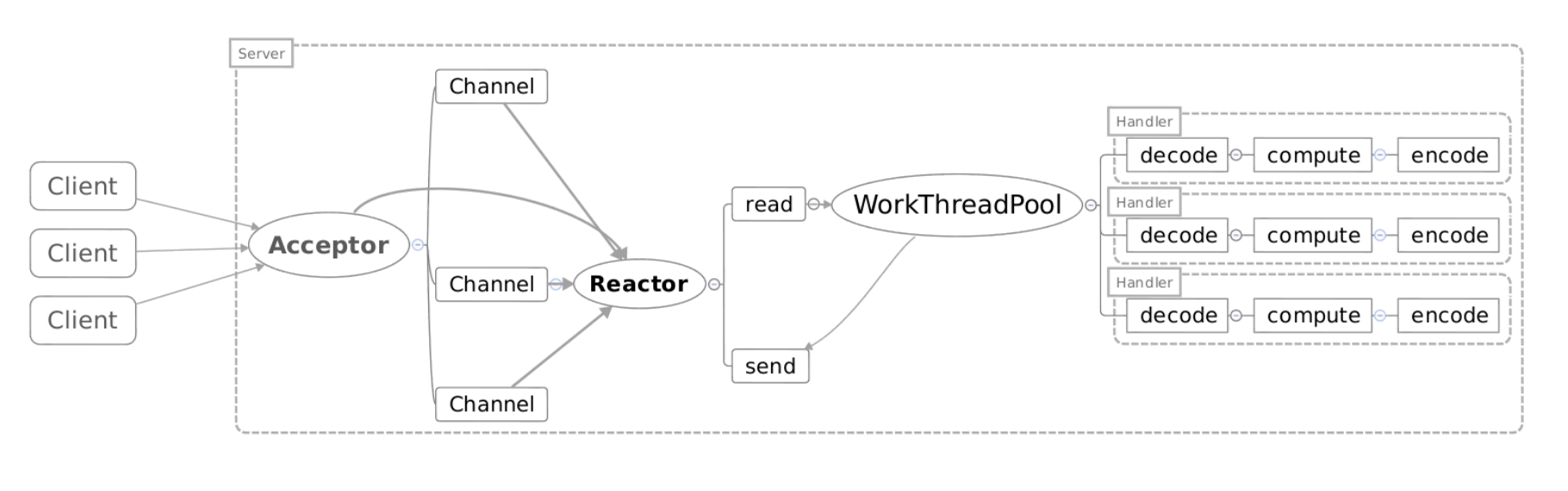

多线程
Acceptor类
package ThreadGroupTest;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;
public class Acceptor {
public static void main(String[] args) throws IOException {
/**
* init
*/
ServerSocketChannel serverSocketChannel;
Selector selector;
Set<SelectionKey> selectionKeys = null;
serverSocketChannel = ServerSocketChannel.open();
selector = Selector.open();
serverSocketChannel.bind(new InetSocketAddress("127.0.0.1", 9090));
serverSocketChannel.configureBlocking(false);
serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);
System.out.println("server is start...");
ReactorThreadGroup group = new ReactorThreadGroup(10);
while (true) {
selector.select();
selectionKeys = selector.selectedKeys();
Iterator<SelectionKey> it = selectionKeys.iterator();
for (; it.hasNext(); ) {
SelectionKey key = it.next();
it.remove();
if (key.isAcceptable()) {
ServerSocketChannel sc = (ServerSocketChannel) key.channel();
SocketChannel client = sc.accept();
client.configureBlocking(false);
System.out.println("connected...");
group.dispatch(client);
}
}
}
}
}
ReactorThreadGroup类
package ThreadGroupTest;
import java.nio.channels.SocketChannel;
import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;
import java.util.Set;
import java.util.concurrent.atomic.AtomicInteger;
import java.util.concurrent.locks.ReentrantLock;
import static com.dmc.common.AsysWriter.doWrite;
public class ReactorThreadGroup {
private static final int DEFAULT_THREADPOOL_SIZE = 10;
private Integer threadNum;
private AtomicInteger currentNum = new AtomicInteger(0);
private List<Handler> handlerWorkers = new ArrayList<Handler>();
public ReactorThreadGroup() {
this(DEFAULT_THREADPOOL_SIZE);
}
public ReactorThreadGroup(Integer threadNum) {
this.threadNum = threadNum;
for (int i = 0; i < threadNum; i ++) {
Handler worker = new Handler();
handlerWorkers.add(worker);
worker.start();
}
System.out.println("threadpool create success");
}
public void dispatch(SocketChannel sc) {
next().add(sc);
}
public Handler next() {
return handlerWorkers.get((currentNum.getAndIncrement()) % threadNum);
}
}
Handler类
package ThreadGroupTest;
import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.*;
import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;
import java.util.Set;
import java.util.concurrent.atomic.AtomicInteger;
import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.ReentrantLock;
import static com.dmc.common.AsysWriter.doWrite;
public class Handler extends Thread{
private ReentrantLock lock = new ReentrantLock();
private Condition condition = lock.newCondition();
private volatile Boolean running = false;
private List<SocketChannel> socketChannelList;
private Selector selector;
private Boolean isConnected = false;
Handler() {
try {
socketChannelList = new ArrayList<>();
selector = Selector.open();
} catch (IOException e) {
e.printStackTrace();
}
}
public void add(SocketChannel socketChannel) {
lock.lock();
try {
selector.wakeup();
socketChannel.register(selector, SelectionKey.OP_READ);
socketChannelList.add(socketChannel);
condition.signal();
isConnected = true;
} catch (ClosedChannelException e) {
e.printStackTrace();
} finally {
lock.unlock();
}
}
@Override
public void run() {
lock.lock();
try {
while (true) {
if (!isConnected) {
condition.await();
}
selector.select();
Set<SelectionKey> selectionKeys = selector.selectedKeys();
Iterator<SelectionKey> it = selectionKeys.iterator();
for (; it.hasNext();) {
SelectionKey key = it.next();
it.remove();
if (key.isReadable()) {
SocketChannel sc = (SocketChannel) key.channel();
ByteBuffer byteBuffer = ByteBuffer.allocate(1024);
int readBytes = sc.read(byteBuffer);
if (readBytes > 0) {
System.out.println("connected to thread " + Thread.currentThread().getName());
byteBuffer.flip();
byte[] bytes = new byte[byteBuffer.remaining()];
byteBuffer.get(bytes);
String response = new String(bytes, "UTF-8");
System.out.println("GET, the request is " + response + " it's from " + sc.getRemoteAddress());
String result = response + " 's result";
System.out.println("send result...");
doWrite(sc, result + "");
} else if (readBytes < 0) {
System.out.println(Thread.currentThread().getName() + " disconnected");
key.cancel();
sc.close();
}
}
}
}
} catch (Exception e) {
e.printStackTrace();
} finally {
lock.unlock();
}
}
}

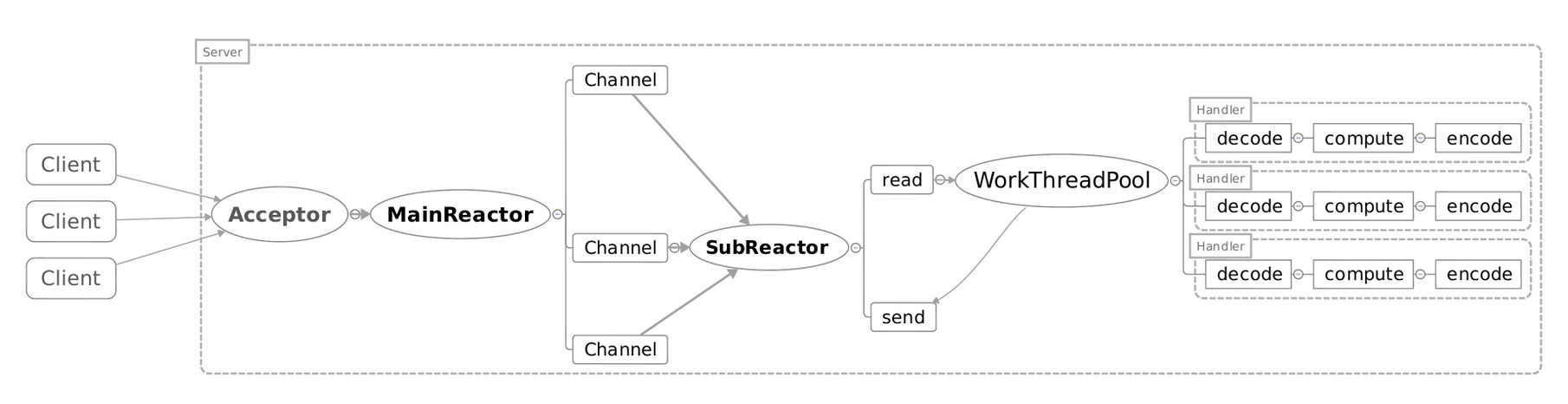

主从
ServerStart.java
package MasterSlaveReactor;
public class ServerStart {
public static void main(String[] args) {
MainReactor mainReactor = new MainReactor();
new Thread(mainReactor).start();
}
}
MainReactor.java
package MasterSlaveReactor;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;
import java.util.concurrent.Executor;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.atomic.AtomicInteger;
public class MainReactor implements Runnable, CallBack{
private static final int DEFAULT_PORT = 9090;
private static final String DEFAULT_HOST = "127.0.0.1";
private int port;
private String host;
private AtomicInteger currentNum;
private ServerSocketChannel serverSocketChannel;
private Selector selector;
private ExecutorService threadPool;
private ExecutorService subThreadPool;
private SubReactor[] subReactors = new SubReactor[10];
MainReactor() {
this(DEFAULT_HOST, DEFAULT_PORT);
}
MainReactor(String host, Integer port) {
this.port = port;
this.host = host;
currentNum = new AtomicInteger(0);
init();
initSubPool();
}
public void initSubPool() {
subThreadPool = Executors.newFixedThreadPool(10);
for (int i = 0; i < 10; i ++) {
subReactors[i] = new SubReactor();
subThreadPool.execute(subReactors[i]);
}
}
public void init() {
try {
threadPool = Executors.newFixedThreadPool(10);
serverSocketChannel = ServerSocketChannel.open();
selector = Selector.open();
serverSocketChannel.configureBlocking(false);
serverSocketChannel.bind(new InetSocketAddress(host, port));
serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);
} catch (IOException e) {
e.printStackTrace();
}
}
@Override
public void run() {
while (true) {
try {
selector.select();
Set<SelectionKey> selectionKeyset = selector.selectedKeys();
Iterator<SelectionKey> it = selectionKeyset.iterator();
for (;it.hasNext();) {
SelectionKey key = it.next();
SocketChannel sc = serverSocketChannel.accept();
sc.configureBlocking(false);
accept(sc);
it.remove();
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
public void accept(SocketChannel sc) {
Acceptor acceptor = new Acceptor(sc);
acceptor.setCallBack(this);
threadPool.execute(acceptor);
}
@Override
public void Dispatch(SocketChannel socketChannel) {
SubReactor subReactor = next();
subReactor.register(socketChannel);
}
public SubReactor next() {
return subReactors[currentNum.getAndAdd(1) % 10];
}
}
Acceptor.java
package MasterSlaveReactor;
import ThreadGroupTest.ReactorThreadGroup;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
public class Acceptor implements Runnable{
private SocketChannel socketChannel;
private CallBack callBack;
public CallBack getCallBack() {
return callBack;
}
public void setCallBack(CallBack callBack) {
this.callBack = callBack;
}
Acceptor(SocketChannel socketChannel) {
this.socketChannel = socketChannel;
}
@Override
public void run() {
try {
// TODO
System.out.println( Thread.currentThread().getName() + " " + socketChannel.getRemoteAddress() + " connected...");
callBack.Dispatch(socketChannel);
} catch (Exception e) {
e.printStackTrace();
}
}
}
SubReactor.java
package MasterSlaveReactor;
import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.ClosedChannelException;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.SocketChannel;
import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;
import java.util.Set;
import static com.dmc.common.AsysWriter.doWrite;
public class SubReactor implements Runnable{
private List<SocketChannel> socketChannels;
private Selector selector;
SubReactor() {
init();
}
private void init() {
try {
selector = Selector.open();
socketChannels = new ArrayList<>();
} catch (IOException e) {
e.printStackTrace();
}
}
public void register(SocketChannel socketChannel) {
try {
socketChannel.register(selector, SelectionKey.OP_READ);
socketChannels.add(socketChannel);
} catch (ClosedChannelException e) {
e.printStackTrace();
}
}
@Override
public void run() {
while (true) {
try {
selector.select(1000);
Set<SelectionKey> keys = selector.selectedKeys();
Iterator<SelectionKey> it = keys.iterator();
for (; it.hasNext();) {
SelectionKey key = it.next();
if (key.isReadable()) {
SocketChannel sc = (SocketChannel) key.channel();
ByteBuffer byteBuffer = ByteBuffer.allocate(1024);
int readBytes = sc.read(byteBuffer);
if (readBytes > 0) {
System.out.println("connected to thread " + Thread.currentThread().getName());
byteBuffer.flip();
byte[] bytes = new byte[byteBuffer.remaining()];
byteBuffer.get(bytes);
String response = new String(bytes, "UTF-8");
System.out.println("GET, the request is " + response + " it's from " + sc.getRemoteAddress());
String result = response + " 's result";
System.out.println("send result...");
doWrite(sc, result + "");
} else if (readBytes < 0) {
System.out.println(Thread.currentThread().getName() + " disconnected");
key.cancel();
sc.close();
}
}
it.remove();
}
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
callback接口
package MasterSlaveReactor;
import java.nio.channels.SocketChannel;
public interface CallBack {
void Dispatch(SocketChannel socketChannel);
}
结尾
在理解时过于注重类的关系与实现，导致卡了好久，当关注重点变为线程时，就豁然开朗了。
重在实践，理论知识的掌握是为了更好得落地。“实践是检验真理的唯一标准”。
模型图来自这里，十分直观的图，十分感谢
